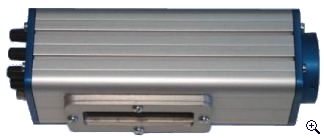

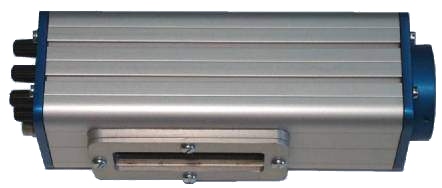

MAURER - Scanner SC 1000



SC 1000
  • adjustable scann angle
  • the right and also the left turning-point separate adjustable
  • variable scann speed
  • several extending options refering to the application
Examples of applications: monitoring of bulk goods on conveyors as well as each application where temperature profile registration is necessary.



Technical datas:
Scann angle 5 - 60° adjust.
Scann speed 25° - 120°/sec. adjust.
Supply voltage 24 V DC/AC
Current input 300 mA
Dimensions H / W / D 68 x 70,5 x 210 mm
Weight 1 kg (2,20 lbs)
Operating temperature 0 - 60°C (32 - 140°F)
Protection class IP 65 (with protection window)
Mode of operation continuous measurement: scann equipment working continuous
single measurement: start through external signal for one scann
manual: adjustment of scann-mirror for measurement at a fixed point
Options:
Angle - output scann-angle as an analog output 0/4 - 20 mA = 0 - 60°
Maximum value memory reset at turning point, external contact


Datasheet SC 1000
Datasheet



Assembly: Protection windows:
Connection cable Scanner - KTRD Quarz glass (0,4 - 3 μm)
Connection cable Scanner CaF2 (0,4 - 11 μm)
Mounting parts for KTRD ZnSe (8 - 14 μm)




Last update:
24.01.2019
