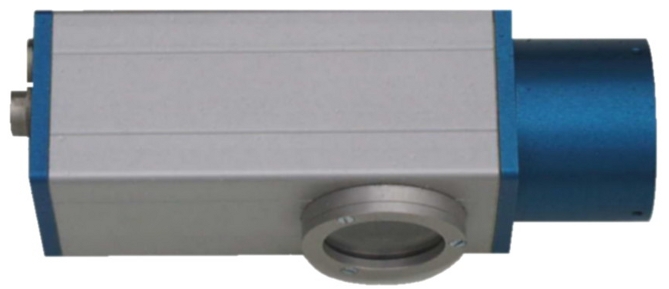

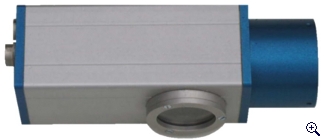

MAURER - Scanner SC 1012
 |
- variable scann speed
- several extending options refering to the application
|
|
|
|
|
| Examples of applications: |
vibrating wires, scaled forged parts, chain treatment, cables, rubber profiles, paper rolls, detection of timber, not exact directed parts, etc. |
| Technical datas: | |
| Scann angle |
6° |
| Scann speed |
2 - 12 meas./sec. adjust. |
| Supply voltage |
24 V DC/AC |
| Current input |
200 mA |
| Dimensions H / W / D |
54 x 54 x 173 mm (2,13x2,13x6,81 inch) |
| Weight |
0,6 kg (1,32 lbs) |
| Operating temperature |
0 - 60°C (32 - 140°F) |
| Protection class |
IP 65 (with protection window) |
| Mode of operation |
continuous measurement: scann equipment working continuous
manual measurement: start through external signal
|
| Outputs |
impulse output of turning points for external signal processing |
| Options: |
|
| Maximum value memory |
reset at turning point, external contact |
Datasheet
| Assembly: | Protection windows: |
| Connection cable Scanner - KTRD |
Quarz glass (0,4 - 3 μm) |
| Connection cable Scanner |
CaF2 (0,4 - 11 μm) |
| Mounting parts for KTRD |
ZnSe (8 - 14 μm) |
|
